FSA-007 Fuel Line Repair Kit

Category: Brand:
Description
Additional information

Overview

The PlusQuip Fuel Line Repair Kit is designed to allow the technician to easily repair a range of fuel line issues including rusted-through areas on steel pipes, embrittled areas on plastic pipes, broken or damaged plugs or kinked plastic pipes.

The kit is suitable for steel or plastic lines with an outside diameter of 8 or 10 mm. Connections between different materials are also possible including plastic line to steel pipe; rubber hose to steel pipe; and plastic line to rubber hose.

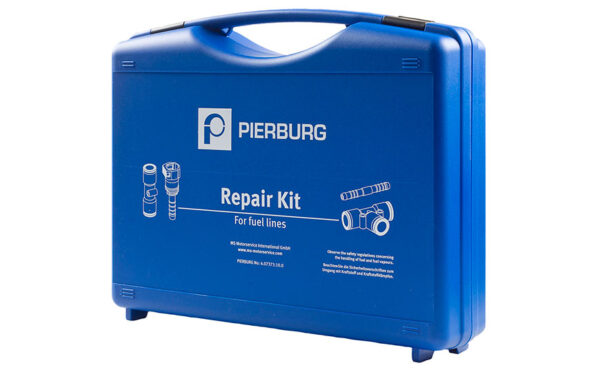

The kit includes the most common connectors for fuel filters, fuel pumps and tank connectors and is supplied in a robust water and chemical resistant carry case with carry handle and twin locking clamps to ensure survival in tough workshop environments.

Features

  • Rapid availability of the suitable quick fit connector, when one breaks during a service or repair (they eventually go brittle or may get damaged by the removal process) means the vehicle can be back on the road as quickly as possible
  • Allows inter-connecting of plastic fuel lines to metal fuel pipes adding flexibility to any fuel line re-routing that may be required
  • Allows the combination of plastic line repair with connectors as required, and metal pipe repairs with connectors if required, all in one kit
  • Ideal for fabricating a new fuel line system for performance modifications or other replacements
  • Cost savings when it comes to repairing a fuel line instead of having to replace a complete fuel line section. (The FSA-007 includes short repair lengths of numerous fuel lines in both plastic and metal for various diameters)
  • Includes internal identification photographs and labelling so components can be easily identified and refill replacement parts easily re-ordered
  • Replacement components are sold separately which ensures that the kit is always complete and ready for any emergency fuel line repair that may eventuatel Pipe 8mm x 45cm x 20mm x 45cm x 2

A full range of refill parts are also available to replenish the kit as required.
This OE quality product is made by Pierburg (Germany).

FSA-007 fuel line repair kit

Specifications

Dimensions:
Length: 510mm
Width: 330mm
Height: 60mm
Weight: 2.1kg

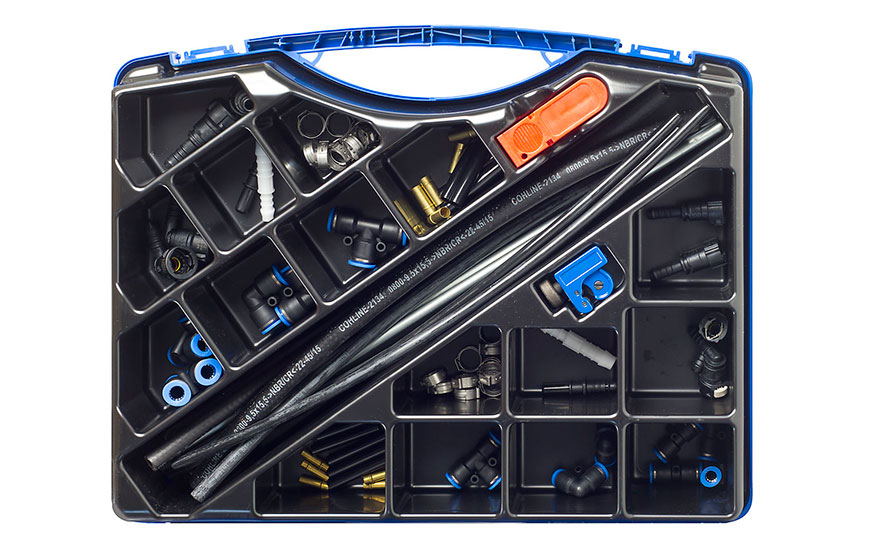

Kit Contains:

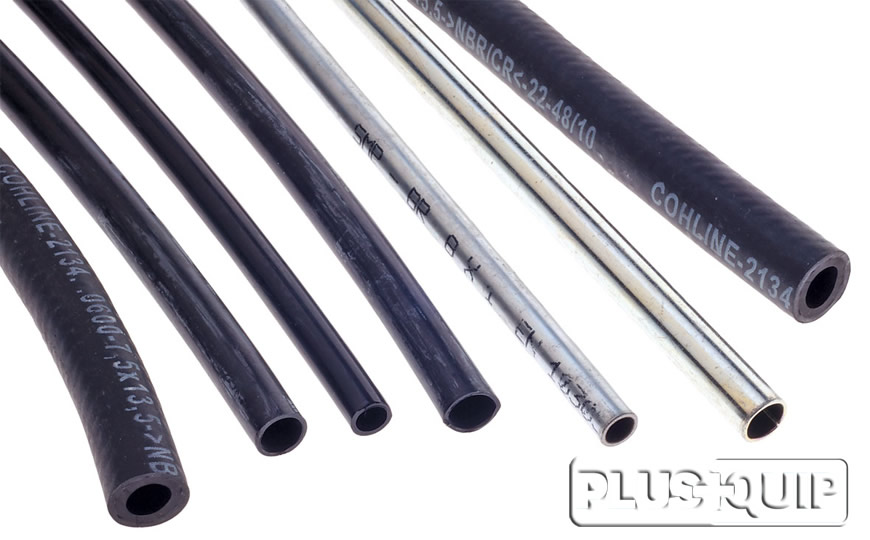

Plastic Fuel Pipe 8mm x 450mm x 2
Plastic Fuel Pipe 10mm x 450mm x 2
Steel Fuel Pipe 8mm x 450mm x 1
Steel Fuel Pipe 10mm x 450mm x 1
Rubber Fuel Pipe 8mm x 450mm x 1
Rubber Fuel Pipe 10mm x 450mm x 1
Plastic Pipe Cutter x 1
Steel Pipe Cutter (3mm to 16mm Diameter) x 1
Hose Clamp Small x 10
Hose Clamp Large x 10
Normaquick Double Connector 8mm x 1
Normaquick Double Connector 10mm x 1
Reducing Hose Connector (Straight) x 2
Plastic Pipe 50mm length 8mm x 5
Plastic Pipe 50mm length 10mm x 5
Flanged Brass Bushing 8mm x 5
Flanged Brass Bushing 10mm x 5
SAE Plug 90 Degree 8mm x 2
SAE Plug 90 Degree 10mm x 2
SAE Plug Straight 8mm x 2
SAE Plug Straight 10mm x 2
Pipe Connector Straight 8mm x 4
Pipe Connector Straight 10mm x 4
Pipe Connector 90 Degree 8mm x 2
Pipe Connector 90 Degree 10mm x 2
Pipe Connector Tee 8mm x 1
Pipe Connector Tee 10mm x 1

FSA-007 fuel line repair kit

FSA-007 fuel line repair kit

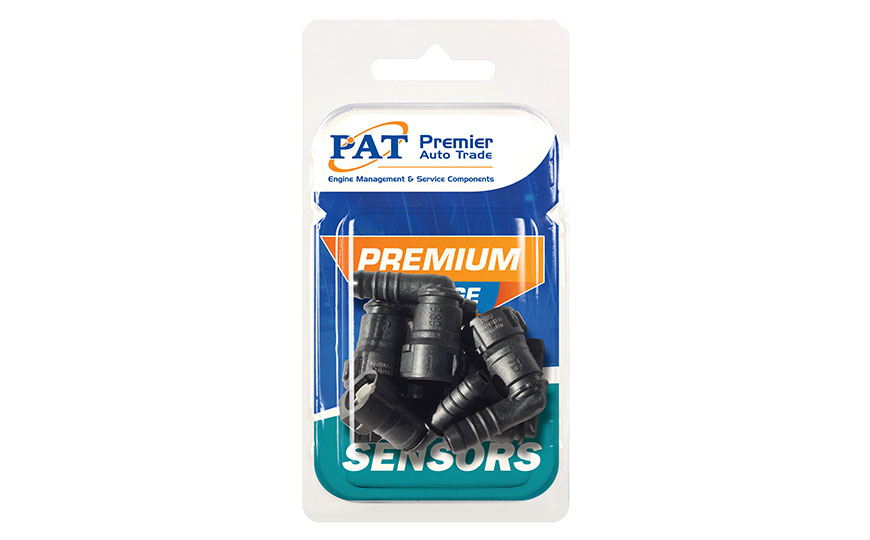

Refill Parts

A full range of refill components are also available to replenish the Fuel Line Repair Kit as required.

Part Number Description and Refill Pack Quantity
FSA-007-A 8mm CONNECTOR STRAIGHT (3pcs)
FSA-007-B 8mm CONNECTOR 90 DEGREE (3pcs)
FSA-007-C 10mm CONNECTOR 90 DEGREE (3pcs)
FSA-007-D 10mm CONNECTOR STRAIGHT (3pcs)
FSA-007-E FLANGED BRASS BUSHING 8mm X 22mm (5 Pcs)
FSA-007-F 8mm PLASTIC PIPE LENGTH 50mm  (5 Pcs)
FSA-007-H 8mm HOSE CLAMP (20pcs)
FSA-007-I 10Mm HOSE CLAMP (20pcs)
FSA-007-J REDUCING HOSE CONNECTOR 8mm – 10mm (2 Pcs)
FSA-007-K DOUBLE CONNECTOR 8mm (2 Pcs)
FSA-007-L DOUBLE CONNECTOR 10mm (2 Pcs)
FSA-007-M FLANGED BRASS BUSHING 10mm X 22mm (5 Pcs)
FSA-007-N PLASTIC PIPE 10mm, LENGTH 50MM (5 Pcs)
FSA-007-O 8mm CONNECTING PIPE STRAIGHT (4 Pcs)
FSA-007-P 8mm CONNECTING PIPE 90 DEGREE (3 Pcs)
FSA-007-Q 8mm CONNECTING PIPE TEE(1 Pc)
FSA-007-R 10mm CONNECTING PIPE T EE(1 Pc)
FSA-007-S 10mm CONNECTING PIPE 90 DEGREE (3 Pcs)
FSA-007-T 10mm CONNECTING PIPE STRAIGHT (4 Pcs)
FSA-007-U 8mm FUEL HOSE 450mm (2 Pcs)
FSA-007-V 10mm FUEL HOSE 450mm (2 Pcs)
FSA-007-W 8mm STEEL PIPE 450mm (2 Pcs)
FSA-007-X 10mm STEEL PIPE 450mm (2 Pcs)
FSA-007-Y 8mm PLASTIC PIPE 450mm (2 Pcs)
FSA-007-Z 10mm PLASTIC PIPE 450mm (2 Pcs)

Refill components are available through specialised automotive resellers and leading automotive retailers

FSA-007 fuel line repair kit

FSA-007 fuel line repair kit

Weight 2.1 kg
Dimensions 51 x 33 x 6 cm
