CPS-000 Connector and Harness Repair Kit

Category: Brand:
Description
Additional information

Overview

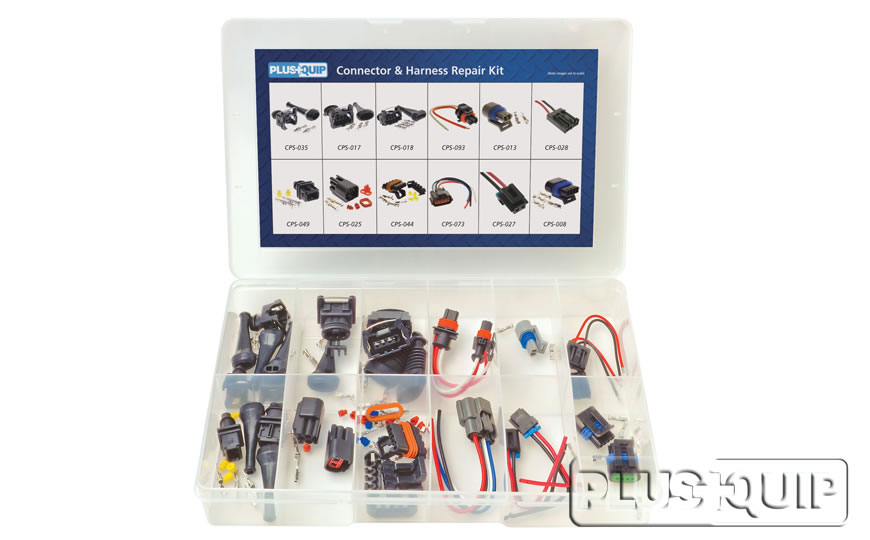

This OE quality Connector and Harness Repair Kit contains 12 of the most common automotive connectors and repair harnesses.

Covers many popular automotive applications including:

  • Ignition components
  • Fuel pumps
  • Fuel injectors
  • Engine sensors
  • Other harness fittings

This Connector and Harness Repair Kit is suitable to replace damaged connectors and ensure a perfect connection when:

  • Connectors are damaged while replacing parts.
  • Connectors are damaged through continuous probing and testing.
  • Connectors or harness become brittle due to continuous heat.
  • Harness wires get damaged at the connector pins.
  • Corrosion or other physical damage on the connector.

A full range of refill parts are also available to replenish the kit as required.

NOTE: The supplied connector wire colours may vary from the harness being repaired.
Some connectors are fitted with a short harness to allow for an easy crimp or soldering connection.

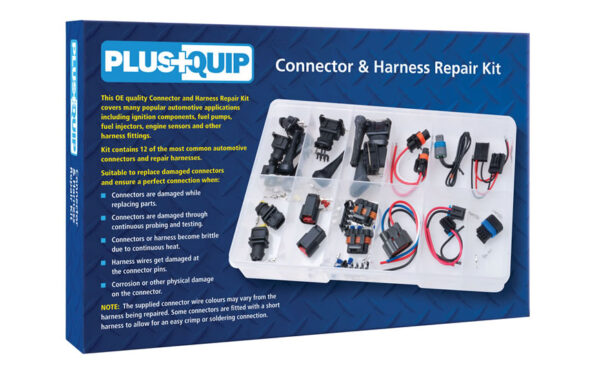

CPS-000 Connector and Harness Repair Kit

Specifications

Dimensions
Length: 315mm
Width: 200mm
Height: 50mm
Weight: 0.67kg

Refill Parts

A full range of refill components are available to replenish the Connector and Harness Kit as required.

An additional range of over 100 connector and harnesses sets are also available.

Part Number Description (Refill Pack Quantity 1 Piece)
CPS-008 GM & CHRYSLER IAC REPAIR HARNESS.
CPS-013 GM AIR TEMP SENSOR REPAIR HARNESS.
CPS-017 3 PIN EFI CONNECTOR SET.
CPS-018 4 PIN EFI CONNECTOR SET.
CPS-025 FORD COIL APPLICATIONS REPAIR HARNESS.
CPS-027 VN – VS FUEL PUMP REPAIR HARNESS.
CPS-028 38MM NIPPON DENSO FUEL PUMPS REPAIR HARNESS.
CPS-035 2 PIN QUICK RELEASE CONNECTOR (LOOSE)
CPS-044 PLUG KIT TO SUIT IGC-037 COIL (GEN3)
CPS-049 2 PIN CONNECTOR MALE SIDE
CPS-073 CONNECTOR HARNESS AND PLUG
CPS-093 CONNECTOR HARNESS AND PLUG

Refill components are available through specialised automotive resellers and leading automotive retailers

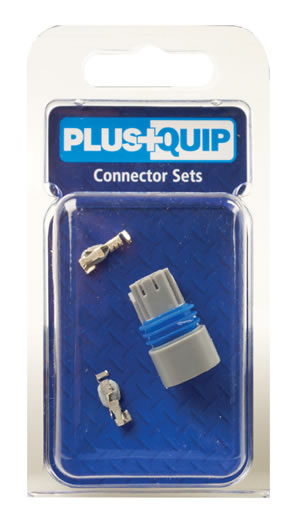

CPS-000 Connector and Harness Repair Kit CPS-013 Blister

CPS-000 Connector and Harness Repair Kit CPS-025 Blister

Weight 0.67 kg
Dimensions 31.5 x 20 x 5 cm
