EQP-114 Battery Analyser And Printer

Category: Brand:
Description
Additional information

Overview

This lightweight, easy to use 12 volt Battery and Electrical System Tester may be used on a variety of 12 Volt vehicle batteries, including:

  • Conventional wet type
  • Low maintenance
  • Flat spiral
  • Maintenance free
  • Gel Cell Batteries

The EQP-114 uses the latest Battery testing technology for fast, accurate and consistent results and with the inclusion of the starter motor earth circuit and alternator test function, is a necessary piece of equipment to assist in determining:

  • Whether the battery requires charging and re-testing.
  • If battery needs replacing due to poor performance.
  • If the battery is acceptable for further service.
  • If the charging system is functioning as required.
  • If the starter motor, chassis to engine – earth circuits are suitable.

The EQP-114 Battery and Electrical System Tester with Printer includes an integrated printer that utilises a thermal paper printing roll which allows the test results to be printed as required.

The downloadable software also allows for your own branded results to be saved to a PC via a USB link, allowing for a customised print out that can be supplied to the customer if requested. Reports easily customised by the workshop.

A 1.7 metre heavy duty cable allows for ease of operation when carrying out any of the necessary tests.

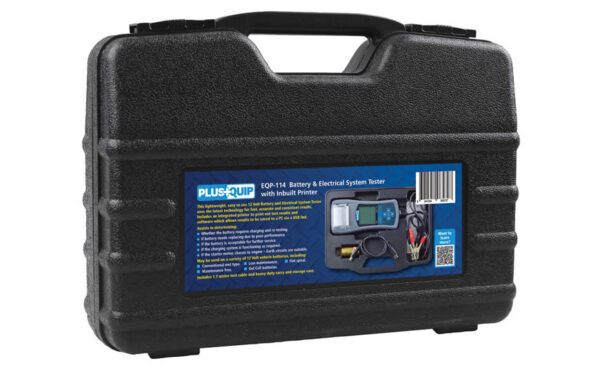

The EQP-114 Battery and Electrical System Tester with Printer are supplied in a robust storage and carry case.

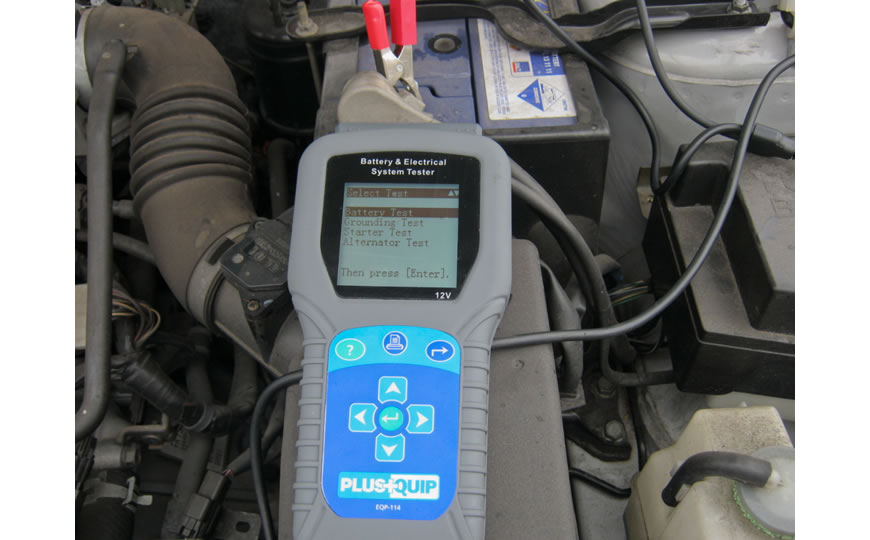

eqp-114 battery and electrical system tester with printer

Specifications

Dimensions
Length: 370 mm
Width: 95 mm
Height: 270 mm
Weight: 2.3 kg

  • Operating Voltage: 9V ~ 15V DC (max)
  • Analysing Capacity (Amps):
    CCA: 100 ~ 1700
    EN: 100 ~ 1700
    JIS#: 100 ~ 1700
    SAE: 100 ~ 1700
    CA: 100 ~ 1700
    IEC: 100 ~ 1000
    DIN: 100 ~ 1000
  • Cold Cranking Amps: 100 – 1700
  • DC Volts Accuracy: ± 2% Reading
  • Languages: Multiple language options are available.
  • PC connection: Through USB cable.
  • Printer head: Thermo print head.
  • Paper width: 56mm ± 0.5mm
  • Paper roll diameter: Max. 40mm OD.
  • Printing Speed: 50mm per sec.
  • Working Temperature: 0ºC ~ 50ºC.
  • Working Humidity: 10 ~ 80 %
  • Tests a wide range of batteries including: AGM, VRLA, SMF, GEL etc

Instruction

EQP-114 Full User Manual PDF (New Model)

EQP-114 PC Link Quick Guide PDF (New Model)

EQP-114 Quick Start Guide PDF

EQP-114 Full User Manual PDF

Video

Download

Download EQP-114 PC link Software and Drivers (ZIP) (New Model)

Download EQP-114 PC Link Software (ZIP)

In the News

Diagnostics Feature – Australian Car Mechanic – (Nov-Dec 2013) PDF

Automotive Electrical and Air Conditioning News – (Apr-May 2014) PDF

Weight 2.3 kg
Dimensions 37 x 9.5 x 27 cm
