EQP-111 ABS Wheel Speed Sensor Test Unit

Description
Additional information

The quickest, most comprehensive Wheel Speed Sensor diagnostic tester available

Overview

The Wheel Speed Sensor and Circuit Tester is the quickest way to verify proper wheel speed sensor operation.

  • Works on all old and new style wheel speed sensors
  • Identify problems multimeters will miss
  • Identify sensor short or open circuits
  • Visually verify sensor signal output
  • Signal simulation enables easy wire harness testing
  • Perform diagnostics right in the workshop – no road test required

Simply connect the tester to the sensor and spin the wheel. The parade of LED’s provide visual confirmation of signal output.  The signal error LED indicates erratic or intermittent signal output.

When used with a scan tool that provides wheel speed sensor data, the Signal simulation feature simplifies pinpointing wire harness problems.

  • Main Unit
  • 14 Male/Female Flex Probe Adapters
  • 2 Alligator Clip Flex Probes
  • Test lead set (3 leads)

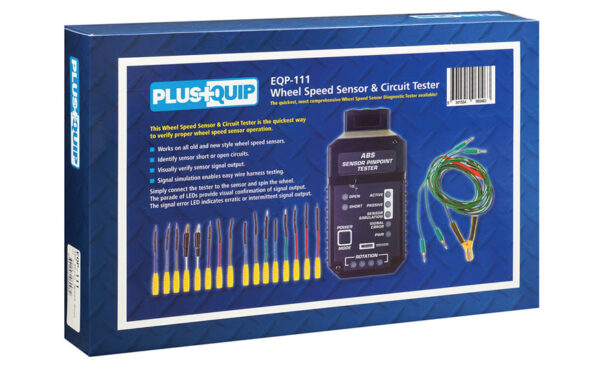

EQP-111 Wheel Speed Sensor and Circuit Tester

Specifications

Dimensions
Length: 315 mm
Width: 200 mm
Height: 50 mm
Weight: 1.6 kg

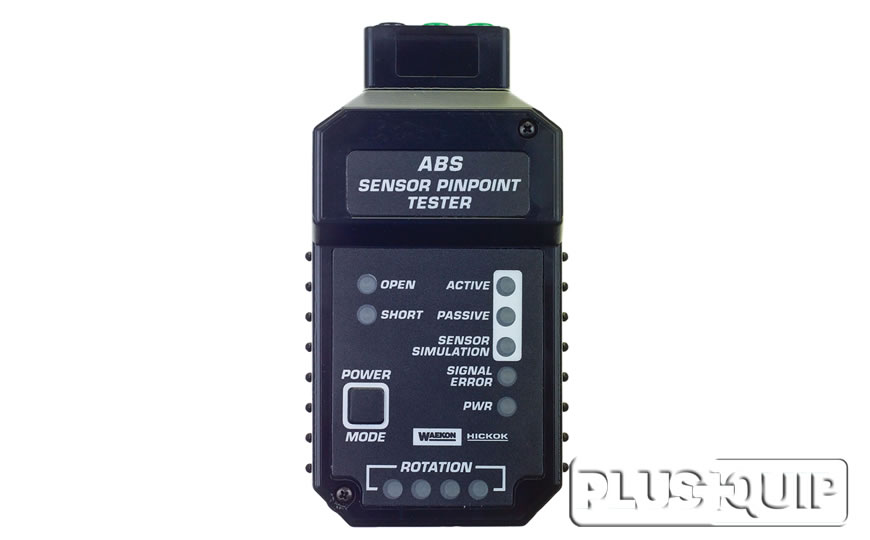

EQP-111 Wheel Speed Sensor and Circuit Tester

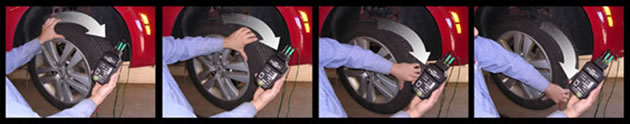

Instruction

Simply connect the tester to the sensor and spin the wheel right in the workshop, no need for road test.

The parade of LEDs provide visual confirmation of signal output.

The signal error LED indicates erratic or intermittent signal output.

When used with a scan tool that provides wheel speed sensor data, the signal simulation feature simplifies pinpointing wire harness and ECU problems.

EQP-111 Wheel Speed Sensor and Circuit Tester Instruction

Video

Weight 1.6 kg
Dimensions 31.5 x 20 x 5 cm
