EQP-105 Noid Light Kit

Description
Additional information

Overview

A selection of 7 common Noid lights covering most Automotive EFI Injector applications fitted in a robust plastic carry case makes testing for an injector pulse an easy task.

Check for issues in the electrical fuel injection system, spark plug circuits or stepper motor / idle speed control (ISC/IAC) valve in no start and stalling engines

This professional and comprehensive set also includes a Fibre Optic extension accessory (120cm) for use on difficult to reach areas, or to test from the driver’s seat.

Two Stepper Motor Circuit (ISC/IAC) Test Lights also included that can identify ECM pulses visually when connected to the stepper motor harness. (GM application only with flat or square 4-pin connectors).

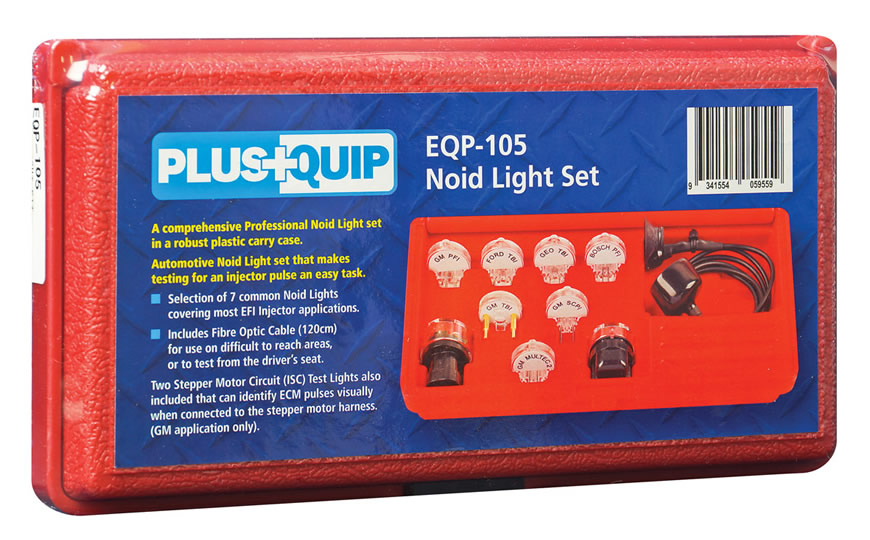

EQP-105 Noid Light Set

EQP-105 Noid Light Set

Specifications

Dimensions
Length: 250mm
Width: 200mm
Height: 50mm
Weight: 0.42kg

Includes 7 common Noid Lights covering most EFI Injector applications:

  • GM Tbi
  • Bosch PFI
  • GM Multec 2
  • Ford TBI
  • GM PFI
  • Geo TBI
  • GM SCPI

ISC Light Applications: GM 700 TBI/FPI with flat or square 4-pin connectors.

EQP-105 Noid Light Set

Instruction

With Fibre Extension

Disconnect the harness connector from fuel injectors.

Insert Noid Light into extension cup then into vehicle’s injection wiring harness.

Extend fibre optic cable.

Suction cup end allows placement on hood, guard, or windshield.

Crank engine. Watch for Noid Light flash indicating normal pulsing voltage.

If vehicle electrical system is functioning correctly, check fuel system.

CAUTION: Bending the extension too sharply will damage the fibre optic cable. (Always wear approved eye protection).

EQP-105 Noid Light Set

Weight 0.42 kg
Dimensions 25 x 20 x 5 cm
