EQP-102 Multimeter and Infrared Thermometer

Description
Additional information

Overview

This automotive auto ranging multimeter is suited to the automotive professionals, with features that will assist in their everyday and also the more comprehensive electrical testing.

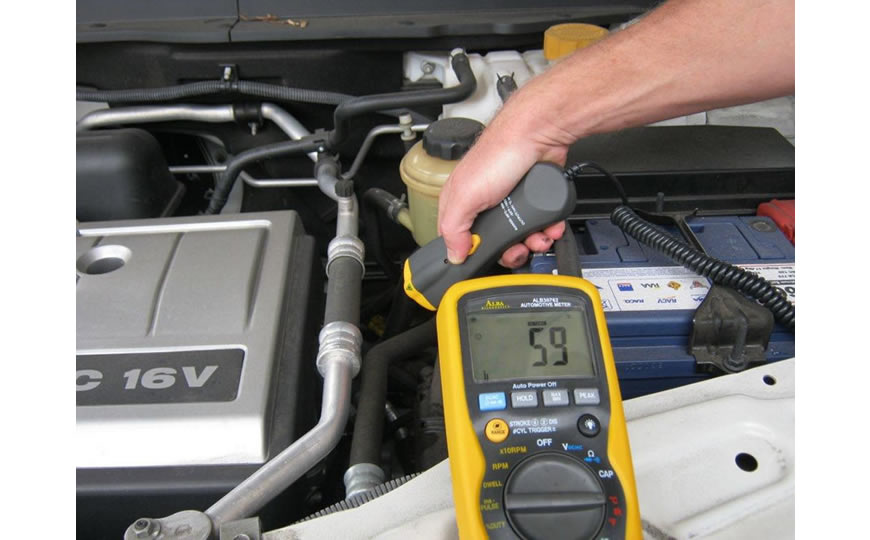

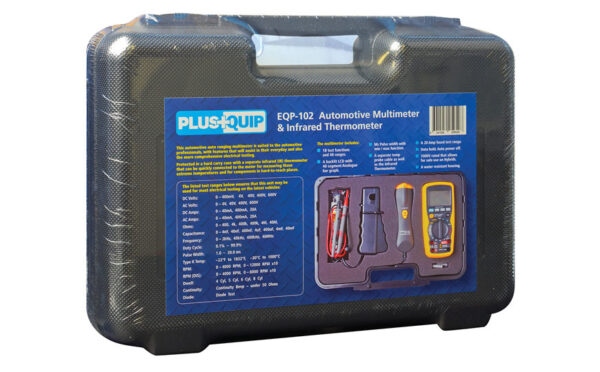

Protected in a hard carry case with a separate infrared (IR) thermometer that can be quickly connected to the meter for measuring those extreme temperatures and for components at those hard to get to places.

The multimeter includes:

  • 18 test functions and 48 ranges.
  • A backlit LCD with 40 segment Analogue bar graph.
  • Ms Pulse width with min/max function.
  • A separate temp probe cable as well as the Infrared Thermometer.
  • A 20 Amp fused test range
  • Data hold, Auto power off.
  • 1000V rated that allows the safe use on Hybrids.
  • A water resistant housing Waterproof to IP67 standards

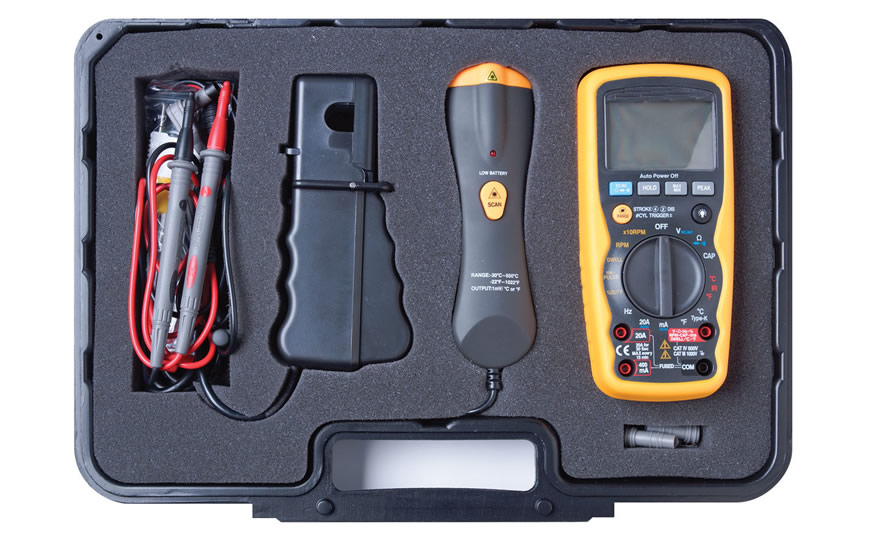

Test Leads, K-Type Temperature Probe, Infrared Temperature adapter, Inductive Pickup, and User Instructions included in Hard Moulded Case

Features

  • Laser guided infrared temperature sensor
  • Also measures Temperature via Temp Probe in Both Fahrenheit and Celsius
  • Hybrid Safe CAT III 1000 volt safety rated
  • Large LCD Display with White LED Back-lighting and 40 Segment Analog Bar graph
  • Peak Min/Max records transient voltages as fast as 1 millisecond
  • Min/Max Mode records variations in all functions
  • Milliseconds Pulse Width Measures Fuel Injector ON -TIME
  • Inductive RPM Readings for both DIS and Conventional Ignitions
  • 20 Amp Test Range – Dual Fuse Protection
  • Data Hold, Auto Power-Off, + Trigger Adjust
  • Shock absorbing double moulded housing

EQP-102 Automotive Multimeter and Infrared Thermometer

Specifications

Dimensions
Height: 182 mm
Width: 82 mm
Depth: 55 mm
Weight: 360 Grams

The listed test ranges below ensures that this unit may be used for most electrical testing on the latest vehicles:

DC Volts: 0-400mV, 4V, 40V, 400V, 600V
AC Volts: 0-4V, 40V, 400V, 600V
DC Amps: 0-40mA, 400mA, 20A
AC Amps: 0-40mA, 400mA, 20A
Ohms: 0-400, 4k, 400k, 400k, 4M, 40M,
Capacitance: 0-4nF, 40nF, 400nF, 4uF, 400uF, 4mF, 40mF
Frequency: 0-2kHz, 40kHz, 400kHz, 40MHz
Duty Cycle: 0.1% – 99.9%
Pulse Width: 1.0 – 20.0 ms
Type K Temp: -22F to 1832F, -30C to 1000C
RPM: 0-4000 RPM, 0-12000 RPM x10
RPM (DIS): 0-4000 RPM, 0-6000 RPM x10
Dwell: 4 Cyl, 5 Cyl, 6 Cyl, 8 Cyl
Continuity: Continuity Beep – under 50 Ohms
Diode: Diode Test

Instruction

EQP-102 Multimeter Instructions for Use PDF

EQP-102 Automotive Multimeter and Infrared Thermometer

In the News

Tool Tests – Australian Car Mechanic – (Nov-Dec 2013) PDF

Weight 0.360 kg
Dimensions 18.2 x 8.2 x 5.5 cm
