EQP-031 PlusQuip VAG Ignition Coil Puller Kit

Category: Brand:
Description
Additional information

Overview

This four piece individual application specific solid set of pullers are suitable for the installation and removal of Coil over Plug / Pencil Ignition Coils on conventional EFI and Direct fuel injection systems for most VW and Audi Group (VAG) vehicles.

  • Most useful where a lack of space hampers the ignition coil removal process
  • Especially useful for coils that have become bonded and are difficult to remove.
  • Using the correct tool reduces both labour time and damage to the ignition coil


This four piece application specific kit suits a wide range of VW and Audi Group (VAG) vehicles.

  • 4 cylinder VAG – standard and turbo vehicles
  • 5 and 6 cylinder VAG – standard and turbo vehicles
  • 8, 10 and 10 cylinder VAG vehicles
  • Suitable for most VAG injection engines.

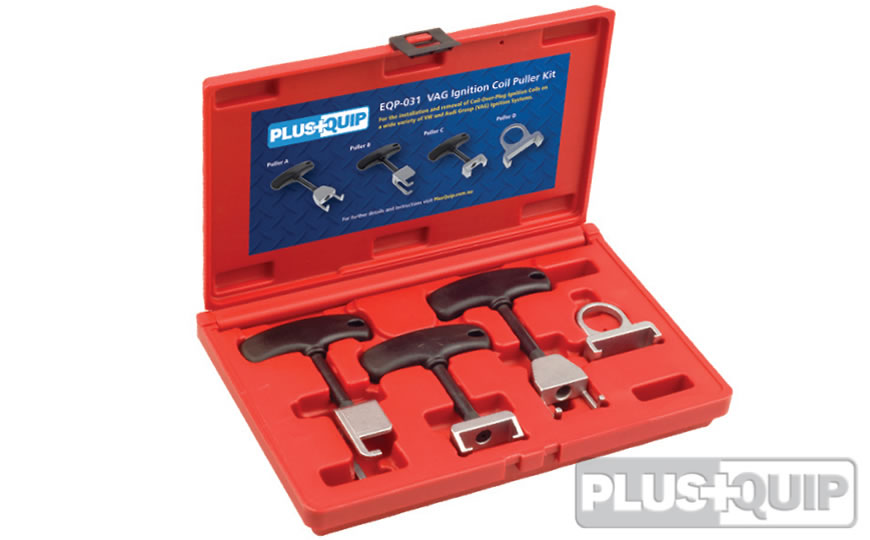

This durable kit that is stored in a sturdy plastic case is manufactured to the highest standard is a must have for the true professional technician.

EQP-031 VAG Ignition Coil Puller Kit

Specifications

Dimensions
Length: 300mm
Width: 200mm
Height: 60mm
Weight: 1 kg

EQP-031 VAG Ignition Coil Puller Kit

Instruction

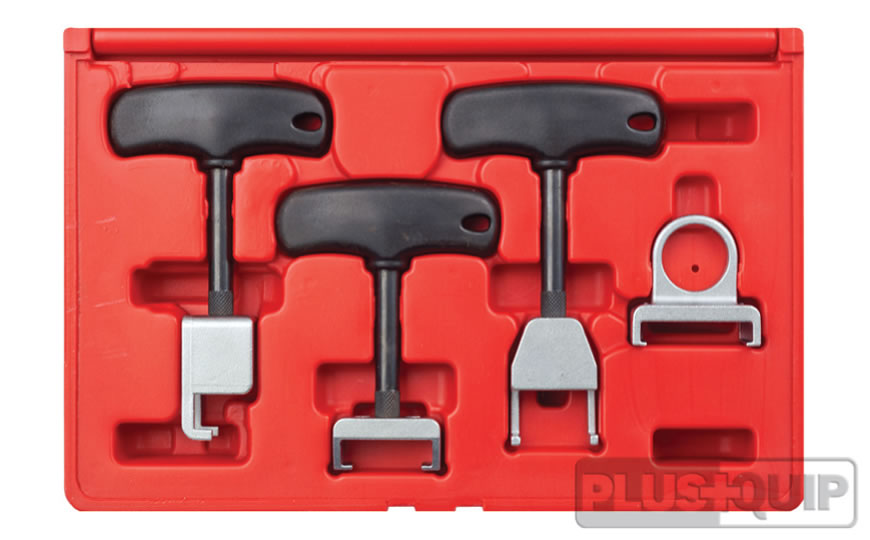

Three pullers incorporate sturdy T shaped handles allowing for added control and stability.

One puller incorporates a ring grip and is useful where lack of space hampers the coil removal process that would restrict any pullers with handles.

Note: The use of Silicone Dielectric Compound should be used on all pencil ignition coils on areas of spark plug contact to ensure ease of coil removal at a later stage and prolong ignition coil life.

EQP-031 VAG Ignition Coil Puller Kit

EQP-031 VAG Ignition Coil Puller Kit

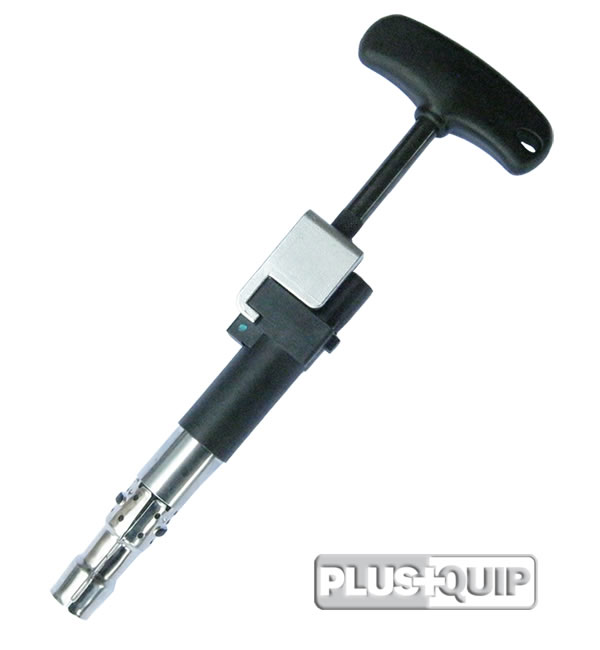

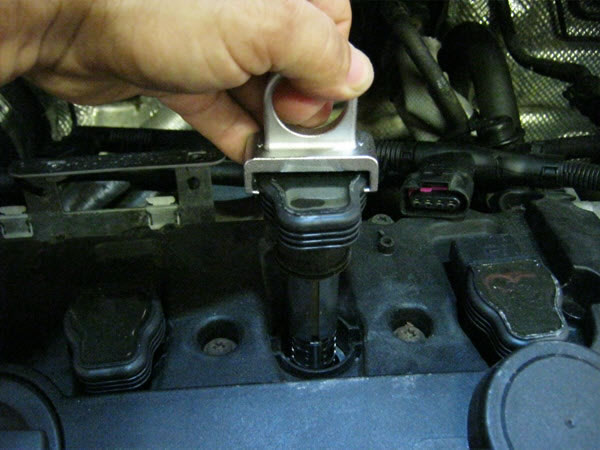

EQP-031 VAG Ignition Coil Puller Kit in Use

Weight 0.95 kg
Dimensions 10 x 13 x 13 cm
