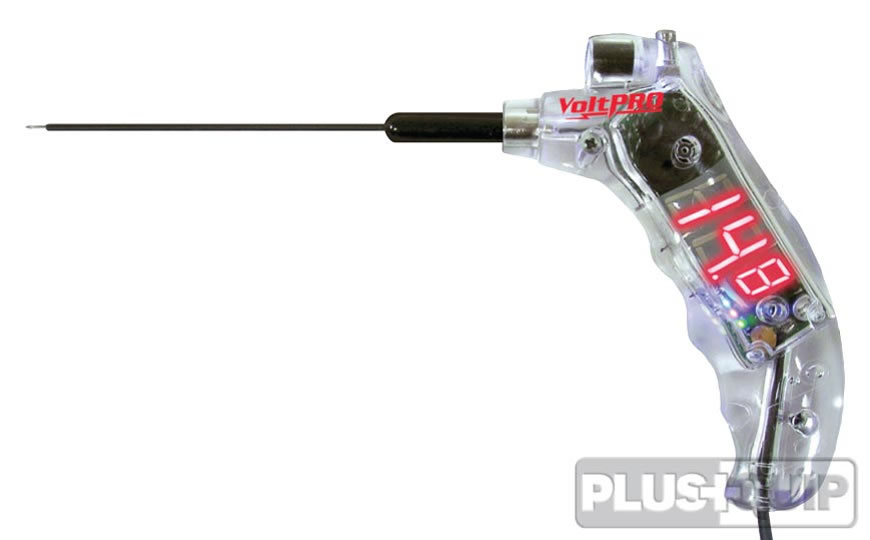

EQP-028 Hi Vis Volt Pro Probe

Description
Additional information

Overview

High visibility, simple to use, one handed dynamic voltage testing. Indicates Power and Grounds. Test the circuit’s ability to deliver current and identify loose, corroded or broken wires. Capture intermittent spikes or drops in voltage. Take Voltage Snapshots in any mode, any time.

  • Dynamic voltage drop testing
  • Voltage snapshot
  • Min/Max glitch capture
  • Power and ground LED indicators
  • Computer safe

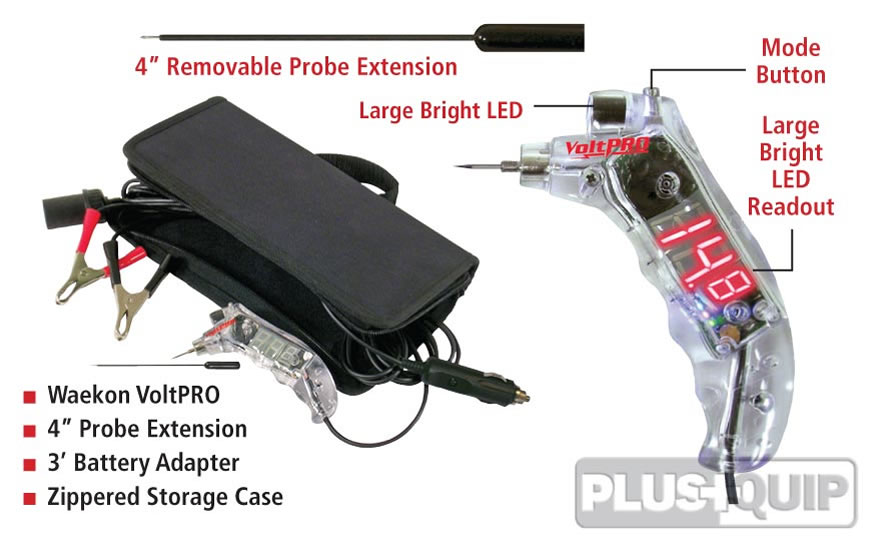

Features:

  • Large super bright LED readout
  • Super bright LED light
  • Mode button
  • Mode LED, Power/Ground LED’s
  • 4” Removable probe extension
  • Limited Lifetime Warranty

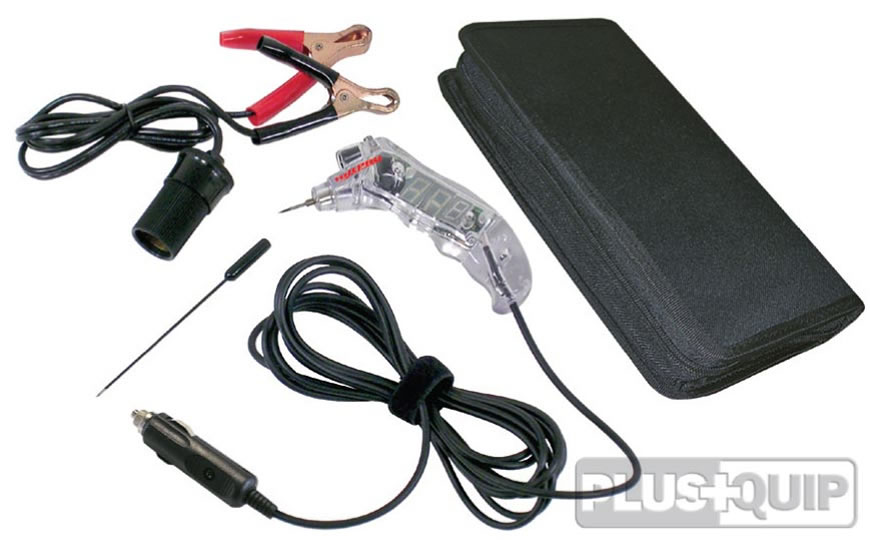

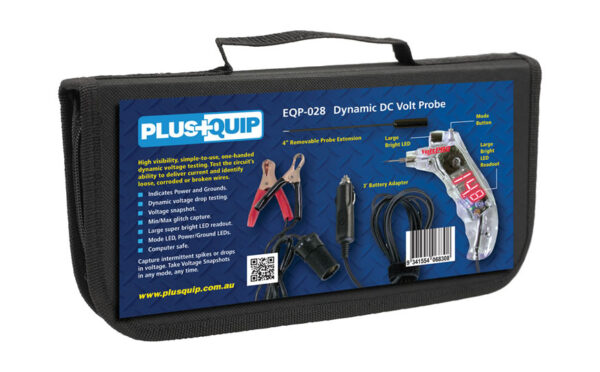

Kit Includes:

  • VoltPRO Probe
  • 4” Probe extension
  • 2’ Battery adapter
  • Zippered storage case

EQP-028 dynamic dc volt probe

Specifications

Dimensions
Length: 152mm
Width: 279mm
Height: 38mm
Weight: 1kg

Range: 0-99.9 VDC
Accuracy: +/- 1% full scale
Resolution: 0.1 VDC
Sample rate: 100/sec

Instruction

The VoltPRO DC Probe is easy to use allowing one handed dynamic voltage testing.

It operates in several modes:

  • Circuit Loading Mode – Test circuit’s ability to delivery current (voltage drop testing)
  • Glitch Capture Mode – Displays intermittent increase/decrease in voltage
  • Normal Mode – Measure DC voltage
  • Red/Green LED’s – Identify Power and Ground
  • Voltage Snapshot – Tap mode button to lock reading in any mode
  • Computer Safe – Safe to use on complex vehicle systems

EQP-028 dynamic dc volt probe

In the News

Innovative Products – Australian Car Mechanic – (Nov-Dec 2014) PDF

Weight 1 kg
Dimensions 15.2 x 27.9 x 3.8 cm
